Solar PV Panel Options Mono-Black High Efficiency Ultra Efficient

Leeds Solar's core range features a carefully chosen selection of very high quality non Chinese manaufacured panels to ensure greater quality control and price stability as they will not be affected by the EU Import Tariff on Chinese manufacured panels and solar cells.

SolarWorld Logo

SolarWorld are a true vertically integrated solar manufacturer, manufacturing everything from the initial crystals, wafers, cells & modules themselves in their factory in Freiberg, Germany. With over 30 years of production expertise, SolarWorld AG has been a global market leader for many years, and the experience shows in the quality of the finished products.



SolarWorld plus sort all their modules, plus-sorting guarantees the panels will generate at least the rated output, but usually a few watts higher than the numinal capacity.



Panasonic

Panasonic HIT N series panels are one of the most efficient panels in the world, and also offer improved high temperature and low light performance compared to standard mono-silicon panels due to their hybrid combination of Mono-cystaline and thin-film amorphous PV technologies within the panel.



Fom April 2012 Sanyo HIT panels became known as Panasonic HIT after Sanyo became a fully owned subsidiary of Panasonic.



Leeds Solar are certified Panasonic Solar Premium Installers, and were previously the first Sanyo Premium Installers in West Yorkshire, having installed the ultra-efficient HIT panels since 2010.



 logo-lg LG mono crystalline panels offer customers cutting edge technology and reliability from a leading electronics manufacturer.

  All Black Solar PV Panels



SolarWorld 250Wp mono-black

  SolarWorld250Wp
  • High performance mono-crystaline solar PV panel
  • Ultra slimline panels with an all black finish for a great looking installation
  • Plus rated panel with -0W to +5W tolerance
  • 4mm glass, and corner inserts combined to create an exceptionally well built panel.
  • Independently tested and certified for salt mist and ammonia resistance, PID resistance, and longterm performance
  • 25 year linear performance warranty
  • 10 year manufacurers warranty
  • 14.9 % module efficiency
  • Dimensions: Length 1675mm, Width 1001mm, Height 31mm
  • Data Sheet
  • Warranty
  • MCS Certificate
  • Installation Manual
  • Test Certificate Ammonia Resistance
  • Salt Mist Corrosion   IEC Certificate

  Back to top




 High Efficiency Solar PV Panels



SolarWorld 270Wp high efficiency mono-black

SolarWorld 270Wp
  • Higher efficiency mono-crystaline solar PV panel
  • Ultra slimline panels with an all black finish for a great looking installation
  • Plus rated panel with -0W to +5W tolerance
  • 4mm glass, and corner inserts combined to create an exceptionally well built panel.
  • Independently tested and certified for salt mist and ammonia resistance, PID resistance, and longterm performance
  • 25 year linear performance warranty
  • 10 year manufacurers warranty
  • 16.1 % module efficiency, for higher generation capacity from the same roof space
  • Dimensions: Length 1675mm, Width 1001mm, Height 31mm
  • Data Sheet
  • Warranty
  • MCS Certificate
  • Installation Manual
  • Test Certificate Ammonia Resistance
  • Salt Mist Corrosion   IEC Certificate



LG NEON 285Wp high efficiency mono-crystalline

LG panel- 285 Neon Mono
  • High efficiency mono-crystalline solar PV panels with 17.4% module efficiency
  • Black annodised frame with white backsheet
  • Suitable for smaller roof spaces with only 14 panels needed for near 4 kWp
  • Plus rated panel, -0% to+3% tolerance
  • 25 year linear performance warranty
  • 10 year manufacurers warranty
  • Less area used per kWp
  • Light and Robust - Panels weigh just 16.8kg but can take up to 5400Pa pressure
  • Dimensions: Length 1640mm, Width 10000mm, 35mm
  • Data Sheet
  • Warranty
  • MCS Certificate
  • Installation Manual
  • Test Certificate Ammonia Resistance
  • Salt Mist Corrosion  IEC Certificate

 Back to top

  Ultra Efficient Solar PV Panels



 240Wp Panasonic HIT N Series Hybrid Panel

  • Up to 30% more generation capacity from the same roof area than standard panels.
  • Triple layered hybrid solar cells producing  19% module efficiency, allows for a 16 panel 3,84kWp array in a 6.5m x 3.24m roof area instead of the 8m x 3.3m area needed for 16 x Hyundai 250Wp panels.
  • 1/3 better high temperature performance than standard panels (0.3%/oC HIT vs 0.45%/oC average)
  • Black framed, black cells for a more subtle visual impact
  • 19% module efficiency | Positive power tolerance (-0/+10% tolerance)
  • Guarantees:  10 year workmanship, 25 year 80% performance
  • Dimensions: Length 1580mm, Width 798mm, Depth 35mm

Back to top



Discontinued Panels



Discontinued panels may still be available on request, but no longer form part of our core product range



270Wp Yingli Panda Mono-crystalline

  • A high efficiency mono-crystaline panel, that's in the top ten most efficienct panels in the world, but without the price premium of the Panasonic HIT panels, making it an excellent alternative in situations where space is limited.
  • 16.5% module efficiency | plus rated, -0W/+5W power tolerance
  • 3 bypass diodes to reduce shading impact
  • 5400Pa snowloading | 2400Pa wind loading
  • Guarantees; 10 year workmanship, 25 year 82% performance
  • Dimensions: Length 1650mm, Width 990mm, Depth 50mm



Hyundai 245 Wp All Black mono-crystalline

  • All black panel, with black frame, black cells and black backing makes for great looking installations that blend in to your roof far better than either standard silver framed panels or the black framed panels white backing.
  • There's a minor trade off in efficiency and slightly higher operating temperatures vs the 250Wp black framed, Hyundai panels with the white backing.
  • 15.2% module efficiency | plus rated panel, -0%/+3% tolerance
  • 3 bypass diodes to reduce shading impact
  • Very high snow and wind loading capabiltiy, upto 5,400 Pa | Salt mist and ammonia resistant
  • Guarantees; 10 year workmanship, 25 year 80% performance
  • Dimensions: Length 1645mm, Width 983mm, Depth 35mm



LG 250 Wp All Black mono-crystalline

LG Mono X Black 250 panel
  • Black frame, black backsheet
  • The modules are around 11% lighter than the G2 predecessor, but retain the same high build quality strength
  • The frames have discreet laser-scribed clamp guidance marks for easy installation
  • The frames also include rear-mounted cable hooks for easier installation and have a gentler finish making them easier to handle
  • Data Sheet
  • Warranty
  • MCS Certificate
  • Installation Manual
  • Test Certificate Ammonia Resistance
  • Salt Mist Corrosion  IEC Certificate



Romag 250 Wp mono-crystalline

 Romag-250Wp-Mono-All-Black
  • 15.6% module efficiency
  • 1-2% above average high temperature output
  • 2-3% above average low light output
  • Rugged 4mm glass & 46mm deep frame
  • Anti-reflective coating for reduced glare and improved angular performance
  • +3% positive power tolerance
  • Automated production line with 2 stage flash testing and electroluminescence testing for high level quality control.
  • Data Sheet
  • Warranty
  • MCS Certificate
  • Installation Manual
  • Test Certificate Ammonia Resistance
  • Salt Mist Corrosion  IEC Certificate
  •



Romag 250 Poly Crystalline

romag 250 poly panel model
  • Black framed  for eye pleasing aesthetics
  • Rugged 4mm glass & 46mm deep frame
  • Anti-reflective coating for reduced glare and improved angular performance
  • +3% positive power tolerance
  • Automated production line with 2 stage flash testing and electroluminescence testing for high level quality control.
  • Excellent low light performance
  • Cost competitive with Chinese panels.
  • Data Sheet
  • Warranty
  • MCS Certificate
  • Installation Manual
  • Test Certificate Ammonia Resistance
  • Salt Mist Corrosion  IEC Certificate



HJ Solar 250Wp All Black mono-crystaline solar PV panel

Jettion JT250SBbB1A



  • A full black panel, with black frame, black cells and black backing makes for great looking installations that blend in to your roof
  • High voltage panel for optimal inverter efficiency
  • Great Value matched with a high module efficiency 14.8 %
  • 12 year PV panel manufacturer’s guarantee
  • Peak Power Warranty - 25 year linear warranty
  • Positive performance tolerance (-0/+5%)
  • 4 bypass diodes for improved shading performance
  • 0.42% temperature coefficient for better than average high temperature performance
  • Data Sheet
  • Warranty
  • MCS Certificate
  • Installation Manual
  • IEC Certificate
  • Test Certificate Ammonia Resistance
  • Salt Mist Corrosion IEC Certificate



Renesola 200Wp All Black panels

 Renosla 200 Wp All Black
  • 15.7 % module efficiency
  • All Black finish for eye pleasing aesthetics
  • Plus rated panel, 0~ +5W tolerance
  • Very good temperature coefficient and very good performance in low irradiation conditions
  • 80 cm wide panel for smaller spaces
  • Data Sheet
  • Warranty
  • MCS Certificate
  • Installation Manual
  • Test Certificate Ammonia Resistance
  • Salt Mist Corrosion  IEC Certificate



250Wp Yingli Panda Poly-crystalline

Yingli 250 Poly panel web
  • Great value polycrystalline PV panels from a tier one manufacturing company
  • 15.3% module efficiency
  • Excellent low & medium light performance to optimise year round performance and on-site energy saving in the UK climate
  • Data Sheet
  • Warranty
  • MCS Certificate
  • Installation Manual
  • CE Declaration
  • IEC Certificate



Back to top





Hyundai 250 Wp Black Frame mono-crystaline

  • Black framed, black cells with white backing for better looking installations, but with slightly improved efficiency and reduced operating temperature than the full black panels.
  • 15.5 % module efficiency | plus rated panel, -0%/+3% tolerance
  • 3 bypass diodes to reduce shading impact
  • Very high snow and wind loading capabiltiy, upto 5,400 Pa | Salt mist and ammonia resistant
  • Guarantees; 10 year workmanship, 25 year 80% performance
  • Dimensions: Length 1645mm, Width 983mm, Depth 35mm




Hyundai 218Wp Short Black Framed mono-crystaline

  • Slightly smaller module than the 250Wp module
  • Black framed, black cells with white backing for better looking installations, but with slightly improved efficiency and reduced operating temperature than the full black panels.
  • 15.0 % module efficiency | plus rated panel, -0%/+3% tolerance
  • 3 bypass diodes to reduce shading impact
  • Very high snow and wind loading capabiltiy, upto 5,400 Pa | Salt mist and ammonia resistant
  • Guarantees; 10 year workmanship, 25 year 80% performance
  • Dimensions: Length 1476mm, Width 983mm, Depth 35mm





Jetion Solar All Black mono-crystaline 250Wp solar PV panel

Jettion JT250SBbB1A



  • All Black panel, with black frame, black cells and black backing makes for great looking installations that blend in to your roof
  • High voltage panel for optimal inverter efficiency
  • Great Value matched with a high module efficiency 14.8 %
  • 12 year PV panel manufacturer’s guarantee
  • Peak Power Warranty - 25 year linear warranty
  • Positive performance tolerance (-0/+5%)
  • 4 bypass diodes for improved shading performance






Jetion 240Wp polycrystaline solar PV panel

Jetion JT240PCe
  • Guaranteed positive tolerance 0/+5W
  • Excellent performance under low light environment
  • Guarantees: 12 year workmanship, 25 year 80% Performance
  • Dimensions: Length 1655mm, Width 942mm, Depth 40mm

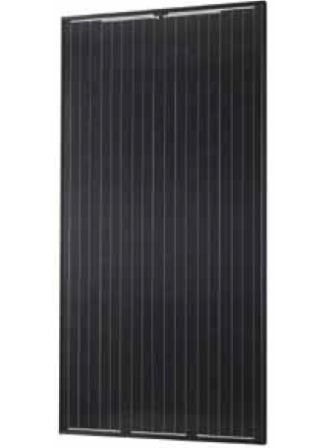

All Black 235Wp Panasonic HIT N Series hybrid panel

Panasonic HIT all black
  • NEW All Black option combining the aesthetic appeal of the All Black range with the excellent performance and efficiency the HIT range is famous for.
  • Triple layered hybrid solar cells producing  18.6% module efficiency, allows for a 16 panel 3,76kWp array in a 6.5m x 3.24m roof area instead of the 8m x 3.3m area needed for 16 x Hyundai 250Wp panels.
  • 1/3 better high temperature performance than standard panels (0.3%/oC HIT vs 0.45%/oC average)
  • Black framed, black cells for a more subtle visual impact
  • 18.6% module efficiency | Positive power tolerance (-0/+10% tolerance)
  • Lower cost per Wp than the 240Wp model
  • Guarantees:  10 year workmanship, 25 year 80% performance
  • Dimensions: Length 1580mm, Width 798mm, Depth 35mm





 Panasonic HIT H Series Hybrid 250Wp

  • Triple layered hybrid solar cells producing 18% module efficiency, allows for a 16 panel 4kWp array in a 7m x 3.24m roof area instead of the 8m x 3.3m area needed for 16 x Hyundai 250Wp panels.
  • 1/3 better high temperature performance than standard panels (0.3%/oC HIT vs 0.45%/oC average)
  • Black framed, and black cells with a unique honeycomb cell layout for impressive looking installations
  • 18% module efficiency | Positive power tolerance (-0/+10% tolerance)
  • Guarantees: 10 year workmanship, 25 year 80% performance
  • Dimensions: Length 1610mm, Width 861mm, Depth 35mm



 Back to top



195Wp Schott Perform mono-crystaline panel
  • Black framed very well built panel from highly respected German manufacturer Schott, with a narrower width than standard to allow for greater design flexibility.
  • Higher operating voltages (36.5V) also enables smaller systems to be closer to the optimum voltage range for the inverters
  • 5400pa wind and snow loading
  • 14.9% module efficiency
  • Dimensions: Length 1620mm, Width 810mm, Depth 50mm



 Schott Protect ASI thin film 105Wp panels

  • Lower cost per watt thin film panel with excellent high temperature and low light performance that will comfortably outperform the Panasonic panels watt for watt.
  • The thin film panels are significantly lower efficiency panels though, so are only suitable for larger roof spaces.
  • The panels are full black panels for extremely good looking PV arrays.
  • Lower weight option for roofs where weight is a factor,
  • Dimensions: Length 1308mm, Width 1108mm, Depth 35mm





UpSolar 190Wp monocrystaline solar PV panel

Upsolar 190



  • Narrower than standard monocrystaline panels suitable for smaller roof spaces, with a 6V higher operating voltage than standard to allow for systems to be designed closer to the inverters peak operating efficiency range.
  • 14.9% module efficiency | -3%/+3% power tolerance
  • 3 bypass diodes to reduce shading impact
  • 5400Pa snowloading | 2400Pa wind loading
  • Guarantees; 10 year workmanship, 25 year 80% performance
  • Dimensions: Length 1640mm, Width 992mm, Depth 40 or 45mm




  • Upsolar 230 / 240Wp silver framed polycrystaline solar pv panel



  • Low priced polycrystaline pv panels with good build quality and performance for our lowest cost value systems.
  • 14.1% / 14.8 module efficiency | -0W/+5W power tolerance
  • 3 bypass diodes  to reduce shading impact
  • 5400Pa snowloading | 2400Pa wind loading
  • Guarantees; 10 year workmanship, 25 year 80% performance
  • Dimensions: Length 1640mm, Width 992mm, Depth 40 or  45mm



250Wp Yingli Panda   Poly-crystalline

Yingli 250 Poly panel web
  • Great value polycrystalline PV panels from a tier one manufacturing company
  • 15.3% module efficiency
  • Excellent low & medium light performance to optimise year round performance and on-site energy saving in the UK climate
  • Data Sheet
  • Warranty
  • MCS Certificate
  • Installation Manual
  • CE Declaration
  • IEC Certificate



250Wp Yingli Panda monocrystaline pv panel
  • The lowest price 250Wp panel in our range allowing for a full 4kWp 16 panel array at value prices.
  • 15.3% module efficiency | plus rated, -0W/+5W power tolerance
  • 3 bypass diodes  to reduce shading impact
  • 5400Pa snowloading | 2400Pa wind loading
  • Guarantees; 10 year workmanship, 25 year 82% performance
  • Dimensions: Length 1650mm, Width 990mm, Depth 50mm



 Back to top













FREE home survey, system design, and quote

Quote Button

Discuss your project with expert solar PV designers & installation engineers not a pushy salesman

0113 3350533

This email address is being protected from spambots. You need JavaScript enabled to view it.






All Leeds Solar PV installation quotes include;

Performance guarantee

Remote monitoring service

10 year workmanship warranty

Energy Performance Certificate

Structural Certificate






Customer Approval Ratings

Guild of Master Craftsmen rating for Leeds Solar

Guild of Master Craftsmen verified
